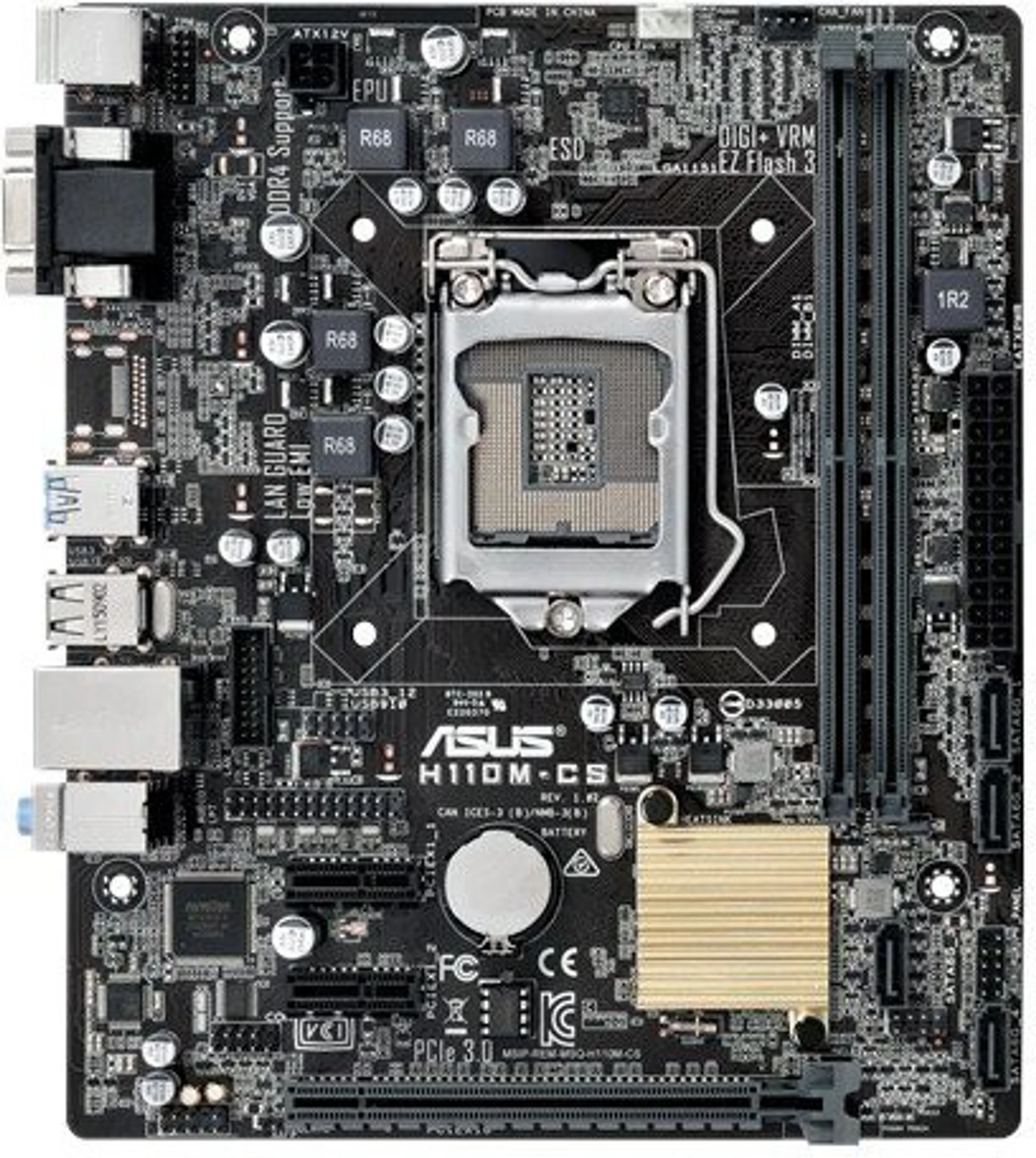

ASUS H110M-CS Micro-ATX Motherboard (LGA 1151, DDR4, 32GB) (Pre Owned)

First of all, this motherboard comes in a micro-ATX form factor, which means it's a perfect fit if you have a small cabinet or want to build a compact PC. Its build quality includes ASUS' 5X Protection technology, which ensures the motherboard's long-term durability through improved circuit design and quality components. It also features hardware-level networking protection like ASUS LANGuard, which protects network connections from static and surges.

Memory and performance

This board features two DIMM slots that support DDR4-1866/2133 memory modules, allowing for up to 32GB of RAM. This memory capacity is sufficient for everyday office work, browsing, multitasking, and most professional tasks. The dual-channel memory architecture also provides excellent data transfer speeds.

Graphics and display output

Since this is an H110 chipset board, it features integrated graphics. The Intel HD Graphics built into the CPU allows for video signal output via a D-sub (VGA) port, and some variants also offer HDMI output. This means that even if you don't want to install a dedicated graphics card, this board is still sufficient for powering the display.

But if you're looking to build a lightweight gaming setup, it also features a PCI Express 3.0 x16 slot, which can be plugged into a dedicated graphics card to significantly boost performance. This makes this board a reliable base for even low-budget gaming builds.

Storage and connectivity

Storage options include SATA 6Gb/s ports that support fast data transfers for both hard drives and SSDs. USB connectivity is also good, with USB 3.2 Gen1 ports allowing you to connect peripherals at high speeds.

Networking is handled by the Realtek RTL8111H controller, which delivers Gigabit LAN speeds and rapidly processes network traffic. Audio is handled by the 8-channel Realtek ALC887 HD audio codec, which delivers clear and quality sound output during multimedia experiences.

Expansion Slots

This board also offers expansion capabilities, featuring a PCIe 3.0 x16 slot and two PCIe x1 slots, allowing users to upgrade their system later by adding a graphics card, sound card, or other expansion cards.

Installation and BIOS

The ASUS H110M-CS's BIOS interface is very user-friendly, allowing even novice users to easily customize settings and optimize system performance. During installation, ensure your cabinet supports the micro-ATX form factor. Fit the motherboard snugly onto the standoffs and properly connect the power, SATA, and front panel connectors.

If the system won't boot, first check the power connection and make sure the RAM and CPU are properly seated. If necessary, remove the battery for a few minutes or use the jumper method to clear the CMOS.

Who is this motherboard for?

The ASUS H110M-CS is specifically designed for users who want a stable, reliable, and affordable motherboard. Whether building an office PC, a multifunctional home computer setup, or an entry-level gaming build, this board fits the bill. Its price also falls within the budget category, making it a smart choice for those looking to build a complete system on a tight budget.

ASUS H110M-CS Specifications Table

Note: Since this is an older motherboard (H110 chipset, 2016 series) and is now discontinued from most markets, prices may vary depending on the seller, stock availability, and location. Please check the current price in your local market/online platform before purchasing.
